Values question

Here are a couple of subs that you could use to send MSB/LSB CC pairs. You'd include them in your If Load section. This is basically all you need to send these things. The rest will depend on the details of your controller. Note that SendHiRes lets you send any number, as long as it's < 16384.
If load

# sends MSB and LSB on 2 CCs spaced 32 apart
# pNumb is the CC# for the MSB
Sub SendHiPair pNumb pMSB pLSB
  Send B0 pNumb pMSB
  Mat I28 = pNumb + 20
  Send B0 I28 pLSB
End

# sends a 14-bit value on two CCs
# pNumb is the CC# for the MSB
Sub SendHiRes pNumb pValue
  Mat I20 = pValue / 80   # shift MSB down
  Mat I20 = I20 & 7F     # mask to ensure only 7 bits
  Mat I21 = pValue & 7F   # mask off 7-bit LSB
  SendHiPair pNumb I20 I21
End

End

Once the bank is set, either manually on the screen or by BankSelect, there's no need to send it repeatedly. Maybe you could send it once, just to be sure it's correctly selected.
You don't need anything special to send a 7-bit CC. Just send it to the MSB (lower) CC#. If you don't actually have high-resolution data, there's no reason to use these MSB/LSB CC pairs. I suggested those two functions to either take 2 7-bit values, like from the EC4, or one 14-bit value, and send the correct CC pair. There's no reason to use them for plain 7-bit data, though I guess you could SendHiPair CC# MSB 0. That would just send 0 on the LSB CC#. Or you could multiply the 7-bit value by 80 and send it with SendHiRes. That would have the same effect. I can help you if you describe exactly what you are receiving and what you need to send.

I wouldn't recommend trying to use two 7-bit controllers to create a 14-bit value because there's no natural connection between them. If the MSB is at maximum, you need to raise the MSB a little bit and zero the LSB. This will be jerky and tricky. It would only be useful if you're trying to hit very precise values. But I suppose if you're generating them from an algorithm that computes a hi-res value, then splits it into 2 CCs, it would work. Of course, if you configure the 2 CCs correctly in Drambo or miRack, you could send them straight into ID700. Splitting a Drambo CV value into MSB and LSB would require some tricky arithmetic. That's harder than anything we've discussed here.

It was meant to simplify sending the hi-res CC pairs, given that you have either the two 7-bit values, or one 14-bit value. I generate 14-bit values from my incremental controller, and use that code to send those values to ID700. Maybe you were asking about receiving those values from ID700; it's a little hard to tell. Receiving is a bit tricky, since you need to recognize the paired CC values.

I don't know anything about the CC looper. I wouldn't focus on the 14-bit issue. When you need it, you'll know.

I believe you are right. But remember, the waves are not the only sources of harmonics. The FM synthesis generates harmonics, determined by the frequency ratios and index values. The wave is just icing on the cake.

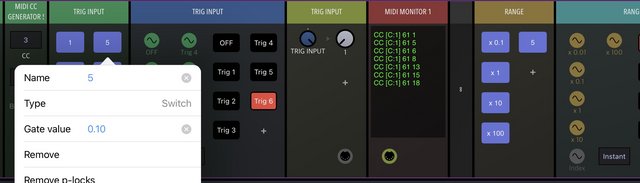

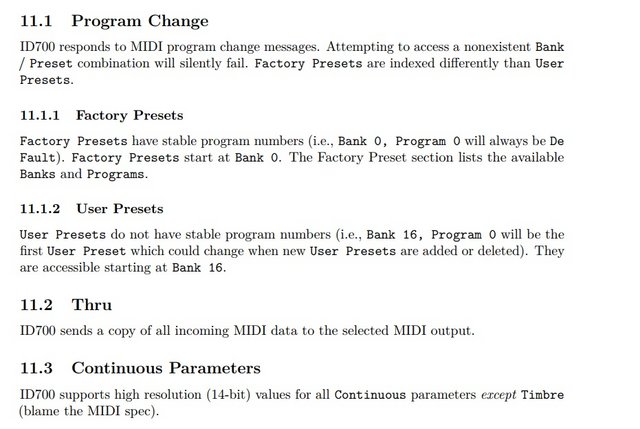

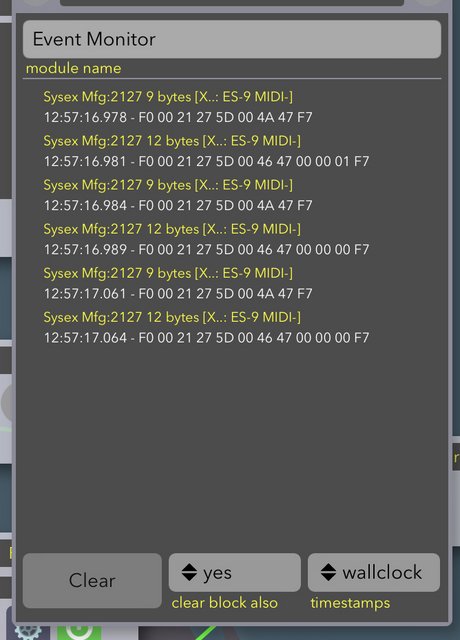

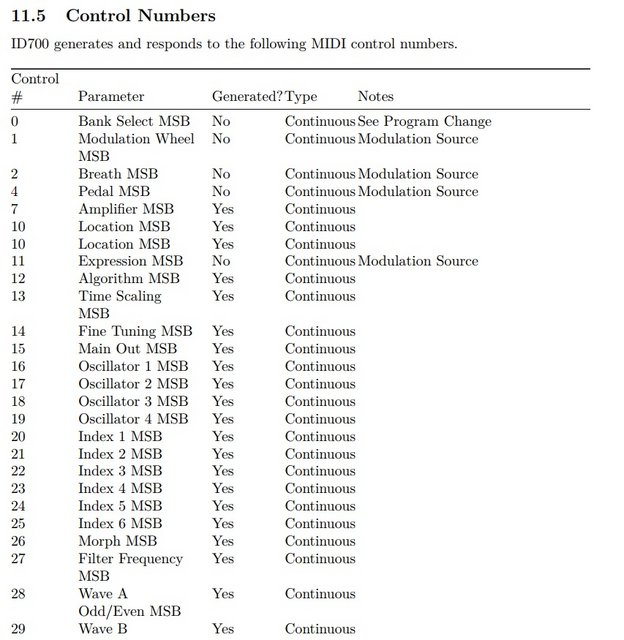

Hi. I have no idea what you're trying to do. But a couple of things you say make me nervous. First, you talk as if MSB/LSB is a specific thing. It it not. A pair of CCs can be used to send a 14-bit value over MIDI. The MIDI spec suggests pairing CCs 0..31 with CCs 32..63 for sending MSB/LSB pairs. NRPN uses one pair of CCs to send a value, and another pair to send a parameter number. This allows controlling a huge number of values, but the interface is clunky and tricky to implement. The CC pair scheme works if the receiving hardware or software is built to expect it. But when communicating with a script, we can use any of the messages that already have two data bytes, like Note On or Off, Pitch Bend, or even Polyphonic Pressure. It's just a matter of what the sender is capable of.

A tricky thing for a script like StreamByter or Mozaic, is that they're made to process one message at a time. So if you're using two CCs to send a 14-bit value, the script has to receive one CC, then wait for the other one before acting on the pair. That means it's important to always send them in the same order, etc. Synchronization can become an issue.

Second, a SysEx message allows an app or hardware to send or receive any data inside a SysEx wrapper. But every SysEx message format is different, and you need software specifically built to communicate with your hardware, like the scripts we've written. So, have you configured TouchOSC to send the correct message for the Disting?

So, finally, what are you trying to do? Do you have data in Drambo that you want to send in 14-bit form to Disting? The Drambo logic I posted in that other thread will convert a value into two values, representing the MSB and LSB components. Not sure about sending it out over 2 CCs, but that should not be too difficult. Then you'll need a script to convert that to the correct SysEx format.

Cheers,
Dave

uncledave , I think this is looking promising, sending out Pitch Bend out of Drambo to an MF Port (as Drambo didn't like to send out SysEx) and then running it through your script into the Disting. All is receiving with fine increment, only thing I I noticed that we have Alias maxValue which was set to $165 for the previous use of selecting drum hits. With this Envelope algorithm I for instance have a Scale parameter that runs up to 10.0V, so I've set the maxValue to $100 which it reaches fine now, but it also needs a negative value as it gos down to -10.0V. Is that something implementable here?


#DistingSelectPB
# Receives a Pitch Bend value and sends it to
# Disting EX as a set parameter SysEx message.
# Route script output to a MIDI connection to disting.
# Remember, all numbers are hex, unless $xx.
# We assume the Pitch Bend channels follow in sequence.
# Disting parameter numbers are given by a table. You can adjust
# them as desired.
# Note the separation of variable names: Ki for constants,
# Ji for saved values, Ii for temp values. Aliases make the
# program more readable, since we don't have to remember
# the array indices.

If load
 # Note: the channel number is the actual message value (range 0..F),
 # not the MIDI channel number (range 0..$16).
 Alias 0 baseChan # Channel number for the first parameter
 Alias 14 numParams # number of parameters
 Alias $100 maxValue # value corresponding to max PB value

 # Disting parameter numbers corresponding to each channel.
 # Edit as desired, don't forget the $.
 Ass K10 = $64 $65 $66 $67 $68 $69 $70 $71 $72 $73 $74 $75 $76 $77
 # No adjustable values below this line ———————————————————
 Set Name DistPB

 Alias 10 paramBase
 Alias I00 reg0
 Alias I01 reg1
 Alias I10 temp0

 # this value cannot happen
 # these registers store the last value sent for each parameter
 Ass J00 = 4000 4000 4000 4000 4000 4000 4000 4000 4000

 # combines two 7-bit bytes into a 14-bit value. Result must be 16-bit.
 Sub CombineBytes result LSB MSB
   Mat result = 80 * MSB
   Mat result = result + LSB
 End

 # splits the give 14-bit value into low and high bytes
 Sub SplitBytes LSB MSB value
   Mat LSB = value & 7F
   Mat MSB = value / 80
 End

 # display the parameter and value and add to monitor stream
 Sub ShowData theParam theValue
   Set LB0 theParam +D
   Set LB1 theValue +D
   Log Param theParam +D
   Log Value theValue +D
 End

 # scales the given 14-bit value to the given maximum, returning
 # the updated value. This method creates Max+1 value bands,
 # numbered 0..Max, with the first and last being half size.
 # This is suitable for a discrete (integer) parameter.
 Sub ReScale theValue theMax
   Mat P0 = theMax * theValue
   Mat P0 = P0 + 2000 # ensure rounding (like adding 0.5)
   Mat theValue = P0 / 4000 # scale down
 End

End # Initialization ———————————————————————————

# this blocks any PB messages. Anything else passes through.
If MT == E0 # handle PB message
 If MC >= baseChan # require channel in expected range
   Mat reg0 = MC - baseChan
   If reg0 < numParams
     # Order of values in PB is LSB, MSB.
     CombineBytes reg1 M1 M2 # combined 14-bit value
     ReScale reg1 maxValue # scale to given maximum
     # only process if scaled value changed
     If reg1 != JI00
       # save the new value
       Ass JI00 = reg1
       # get the parameter number from the table
       Mat I0F = reg0 + paramBase
       Ass reg0 = KI0F
       # diagnostic display
       ShowData reg0 reg1
       # send SysEx msg to set parameter.
       SplitBytes M1 M2 reg1
       Snd F0 00 21 27 5D 00 46 reg0 00 M2 M1 F7
     End
   End
 End
End


Block

I've already adjusted the Aliases and K10 to the right data.

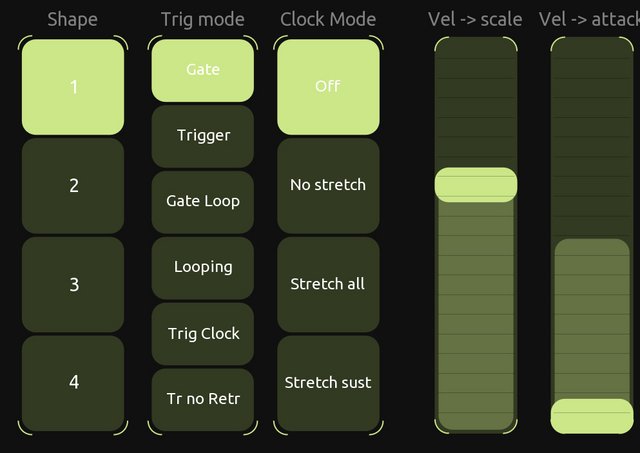

Edit: I just got the switches working to select those 'boxes' as was seen in Touch Osc. So It's only a matter of that negative value for the sliders. I'll wait with setting all of those up yet in case we need a second Pitch Bend or some other logic.
