Note time offset quantizer

Nice, not sure if you saw my [edit] in the previous post? It catches the next #sceneClearout now about 80% of the time, maybe it might have something to do with that my controller automatically fires a song part aka B1 22 00 upon a scene switch (but I suspect that it doesn't always come through at the same time, seems like sometimes before or after If Load. I'm already using these rules in another script to avoid double program changes for synths:

#block B0 22 00 once

if load
 assign L0 = 0
end
if M0 == B1 22 00
 if L0 == 0
   block
   assign L0 = 1
 end
end
Still figuring out if this is the issue here.

This is a tough one to trace, the 80% of the time clearance still keeps happening, maybe the ResetAll sub should only happen once and not be recalled. And everything afterwards going through a new songpart clearSub?

OK, here is the large buffer version of my TickDelay script. It can handle up to 1024 entries. Coding was easy, but testing was hard, because I ran into SB's limiting of loops to 128 iterations. It seems to work now, and I've hammered it pretty hard. It includes some new diagnostic tools.
#TickDelayLarge

# This version uses the W array, which has 2048 unsigned 16-bit words,
# allowing a buffer of 1024 notes. SB limits loops to 128 iterations, so
# some trickery is required to handle large amounts of data.

# If you trigger reset after running, the log will show the maximum index
# values during the run. Just adjust the Count/Reset slider up and back to 0.

# I have tested this by sending 6-note chords from my keyboard as fast
# as I could, into a whole note delay at 120 bpm. The highest number of
# active entries was 150, and the highest cell used was 340, corresponding
# to 170 total entries. This was delaying both Note On and Note Off
# messages.

# Slider 7 displays the number of active items in the buffer.

If load
Alias 9C sendNoteCommand      # change as needed
Alias $0 testOffset      # should be 0 for normal use
Alias $1024 maxCount   # max number of entries
Alias 1 debugLevel      # set to monitor buffer count
# turn off for max performance

Set Name Delay
# Screen Controllers ———————————————————————————
Alias 6 maxNote
Alias 7 maxSlider
Alias $11 maxSelect
# Note that the Qi are published as AUv3 parameters (scaled 0..127)
# so you could control them externally that way. Or, of course, you
# could implement CCs to adjust them directly.
Set Q0 BD 0 maxSelect
Set Q1 HH 0 maxSelect
Set Q2 SD 0 maxSelect
Set Q3 RD 0 maxSelect
Set Q4 CL 0 maxSelect
Set Q5 TM 0 maxSelect
Set Q6 Master_Select 0 maxSelect
# manually set theCount to zero to reset buffer
Alias Q7 theCount
Alias 7 indCount
Set Q7 Count/Reset 0 maxCount

Ass Q0 = 0 0 0 0  0 0 0 0 +P
Set SLIDER_DISPLAY 1
# End Screen Controllers —————————————————————————

# Delays: Whole 96, Half dot 72, Half 48, Qtr dot 36, Qtr 24, Qtr3 16.
# 8th dot 18, 8th 12, 8th3 8, 16th dot 9, 16th 6.
# this tedious method is the only way to convert a number into an
# arbitrary string
Sub SayTickDelay pTicks
  Set LB1 pTicks +D
  If pTicks == 0
     Set LB0 S0
  End
  If pTicks == $96
     Set LB0 SWhole
  End
  If pTicks == $72
     Set LB0 SDotted_Half
  End
  If pTicks == $48
     Set LB0 SHalf
  End
  If pTicks == $36
     Set LB0 SDotted_Qtr
  End
  If pTicks == $24
     Set LB0 SQtr
  End
  If pTicks == $16
     Set LB0 SQtr_Triplet
  End
  If pTicks == $18
     Set LB0 SDotted_8th
  End
  If pTicks == $12
     Set LB0 S8th
  End
  If pTicks == $8
     Set LB0 S8th_Triplet
  End
  If pTicks == $9
     Set LB0 SDotted_16th
  End
  If pTicks == $6
     Set LB0 S16th
  End
End

# delay values in clock ticks, 24 ppqn (pulses per quarter note)
# array indices 0 to maxSelect
Ass K0 = 0 6 8 9 $12 $16 $18 $24 $36 $48 $72 $96

# returns the total delay for the note in pResult
Sub GetDelay pResult pNote
  # Master delay
  Ass I20 = maxNote
  Ass I20 = QI20      # get Master slider value
  Ass pResult = KI20       # index the table of ticks
  Mat I20 = pNote - testOffset   # allows using normal notes to test
  If I20 < maxNote
     # add delay for the note
     Ass I20 = QI20
     Mat pResult = pResult + KI20
  End
End

# W000..W800 is a buffer of 1024 2-word entries (800 is $2048).
# Each entry contains the delay (counting down) and the note
# and its velocity, packed into one word. Times are counted down
# on each tick, and each note is sent when its count reaches 0.
# Notes are added to the first free slot.

# buffer parameters
Alias 2 blockSize      # number of words in each entry
# control values in IFx registers
Alias IF0 firstFree      # position of first free slot
Alias IF1 currCount      # number of active entries
Alias IF2 maxPos      # last array index+1
Alias IF3 currMax      # position of entry off the end
Alias IF4 countMax    # highest count seen
Alias IF5 maxMax      # highest buffer position used
Ass IF0 = 0 0 0 0  0 0 0 0  0 0 0 0  0 0 0 0
Mat maxPos = maxCount * blockSize

# return the first free slot. This will normally be firstFree, unless
# multiple notes arrive between ticks.
Sub FindFreeSlot pResult
  Ass pResult = firstFree
  Ass I20 = firstFree
  If WI20 > 0
     Ass pResult = maxPos      # assume failure
     Mat I20 = I20 + blockSize   # advance, since first item is taken
     # search for free entry
     While I20 < maxPos
        Mat I21 = maxPos - I20      # number of cells remaining
        If I21 > 7F         # limit to 127
           Ass I21 = 7F
        End
        While I21 > 0      # this inner loop limited to 127 steps
           Mat I21 = I21 - 1
           If WI20 == 0
              Ass pResult = I20
              Ass I20 = maxPos   # break loops on success
              Ass I21 = 0
           End
           Mat I20 = I20 + blockSize      # advance to next block
        End # inner loop
     End # while
  End
End

# adds the given note to the queue, with the appropriate delay time
Sub AddNote pNote pVel
  GetDelay I11 pNote
  If I11 > 0      # skip if delay is 0
     FindFreeSlot I10
     If I10 < maxPos      # only add if space available
        If currMax == I10      # update maximum when extending buffer
           Mat currMax = currMax + blockSize
           If maxMax < currMax      # remember highwater level
              Ass maxMax = currMax
           End
        End
        Set LB0 pNote +D      # show note and delay when adding
        Set LB1 I11 +D
        # new entry fills position I10 and I10+1 of W
        Ass WI10 = I11      # delay in ticks
        Mat I10 = I10 + 1
        # Note and velocity packed in one word
        Mat WI10 = pNote * 80      # note value
        Mat WI10 = WI10 + pVel      # velocity
        Mat currCount = currCount + 1
        If countMax < currCount      # remember max number of active items
           Ass countMax = currCount
        End
        If debugLevel > 0
           Ass theCount = currCount
           # If currCount > 7F
              # Log Add_Count currCount +D
           # End
        End
     Else
        Set LB1 SFull
        Log Buffer_Full      # log msg appears in monitor
     End
  End
End

# sends the current note. pWhere is index of the count.
Sub SendDelayedNote pWhere
  Mat I20 = pWhere + 1      # note in next word
  Mat I21 = WI20 / 80         # unpack note and velocity
  Mat I22 = WI20 & 7F
  Send sendNoteCommand I21 I22
  If testOffset > 0      # generate Note Off for testing
     Mat I22 = sendNoteCommand ^ 10      # convert note on to off
     Send I22 I21 0 +D500
  End
End

# decrement the count for each active entry, sending notes
# when their delay expires. Called for each clock tick.
Sub UpdateTicks
  Ass I10 = 0
  Ass I11 = currCount
  Ass I12 = 0
  Ass I14 = 0
  Ass firstFree = currMax
  # loop over active buffer entries
  # note that I11 only changes for active entries, so inactive
  # entries off the end are ignored automatically
  While I11 > 0
     # this double loop is required in case of more than 128 entries.
     # SB loops are limited to 128 iterations.
     Ass I13 = 7F
     While I13 > 0
        Mat I13 = I13 - 1
        If WI10 > 0      # skip notes already sent
           Mat I11 = I11 - 1      # decrement active counter
           If I11 <= 0         # passing last active breaks both loops
              Ass I13 = 0
           End
           Mat WI10 = WI10 - 1      # decrease tick count
           If WI10 <= 0         # first time count reaches 0
              Ass WI10 = 0
              SendDelayedNote I10
              Mat currCount = currCount - 1
              Ass I12 = debugLevel
           End
        End
        # I14 is zero while we're looking for the first free position
        # then it's set very large, so this test always fails
        If WI10 == I14
           Ass firstFree = I10   # save position of first free slot
           Ass I14 = FFFF      # this will not happen again
        End
        Mat I10 = I10 + blockSize         # advance through buffer
     End # inner while
  End  # while

  # remember position off the end
  Ass currMax = I10

  # update count display if anything has changed
  If I12 > 0
     Ass theCount = currCount
     # If currCount > 7F
        # Log Scan_Count currCount +D
     # End
   End
End

# dump active entries for diagnosis
# also shows peak levels seen since reset
Sub DumpActive
  Ass I10 = 0
  Log Dump_Count currCount +D
  Log countMax countMax +D
  Log maxMax maxMax +D
  Ass I11 = currCount
  While I11 > 0
     Ass I14 = 7F
     While I14 > 0
        Mat I14 = I14 - 1
        If WI10 > 0
           Mat I11 = I11 - 1
           If I11 <= 0
              Ass I14 = 0
           End
           Mat I13 = I10 + 1
           Mat I13 = WI13 / 80
           Mat I12 = 100 * WI10
           Mat I12 = I12 + I13
           # log will show 2 hex nybbles with time and note
           Log Buffer I12
        End
        Mat I10 = I10 + blockSize
     End
  End
End

# maximum loop count is 128, so need this double logic.
# two nested loops is good up to 16384.
Sub ClearBuffer
  Ass I10 = 0
  While I10 < maxPos
     Mat I11 = maxPos - I10
     If I11 > 80
        Ass I11 = 80
     End
     # inner loop advances I10 by $128 or less.
     While I11 > 0
        Ass WI10 = 0
        Mat I10 = I10 + 1
        Mat I11 = I11 - 1
      End # inner loop
  End # while
  Log Last_Pos I10 +D
End

# clear the buffer
Sub ResetBuffer
  Set LB0 SReset
  DumpActive
  Ass theCount = 0
  Ass firstFree = 0
  Ass currCount = 0
  Ass currMax = 0
  Ass countMax = 0
  Ass maxMax  = 0
  ClearBuffer
End

ResetBuffer      # initialize data on load

End # Initialization ———————————————————————————

If M0 == F8      # process clock first, since it is most frequent
  If currCount > 0      # check count first to save time
     UpdateTicks
  End
  Block
  Exit      # exit here for quickest handling of F8
End

If MT < 10     # ignore this debugging code; it will never run
  If M1 == $48   # using low C to trigger diagnostic output
     If MT == 90
        DumpActive
     End
     Block
  End
End

# do not add the Note Offs to the buffer unless you really want them
# If MT < A0      # used for testing
If MT == 90      # process Note On
  # you can modify incoming values here as needed
  Ass I00 = M1 M2
  AddNote I00 I01      # this note and velocity added to buffer
End

# these events happen when a control is changed
If M0 == F0 7D 01 # handle control change
  If M3 < maxSlider      # M3 is the index of the changed Qi
     # displays the delay based on the selection
     Ass I00 = QM3
     SayTickDelay KI00
  End
  If M3 == indCount
     # move slider and back to 0 to trigger reset
     If theCount == 0
        ResetBuffer
     End
  End
End

Block

Don't think it can get any more reliable then this! just tested again with 96 notes on 150 BPM, this time I set FLAM on all of them so the note stream doubled or likeley quadrupled, Count never gos over 15 with these extreme settings.
with my normal presets the count never gos over 2 now, ha! another milestone Dave!

That's because you're using a very short delay. The serious test is to use whole note delay, or even two whole notes (master+specific); though that's not likely musically appropriate.

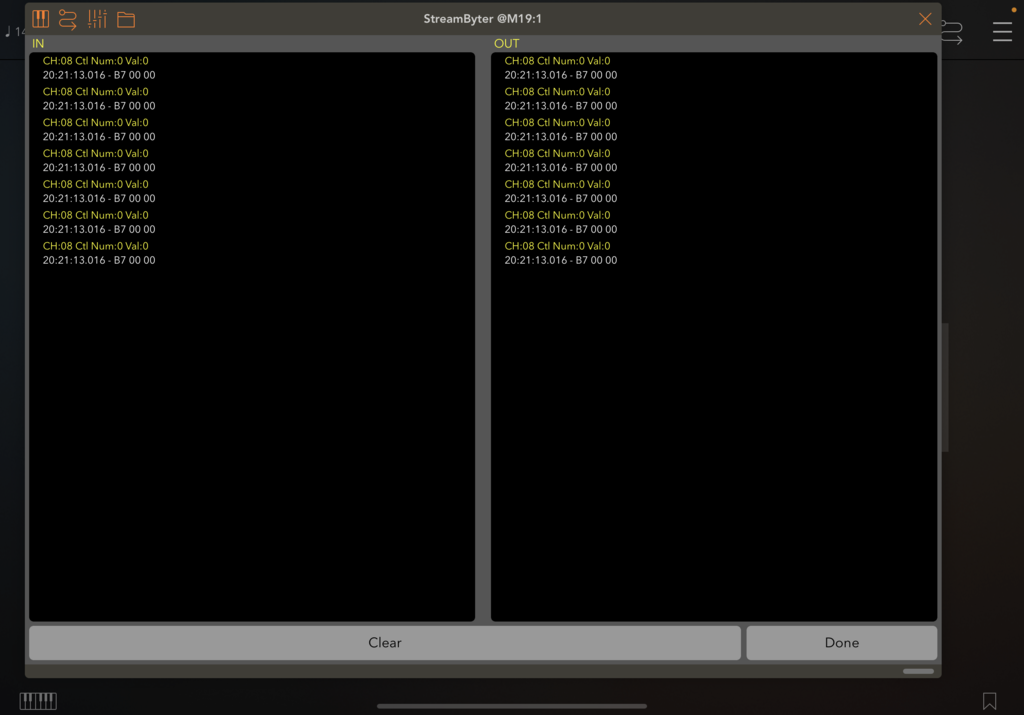

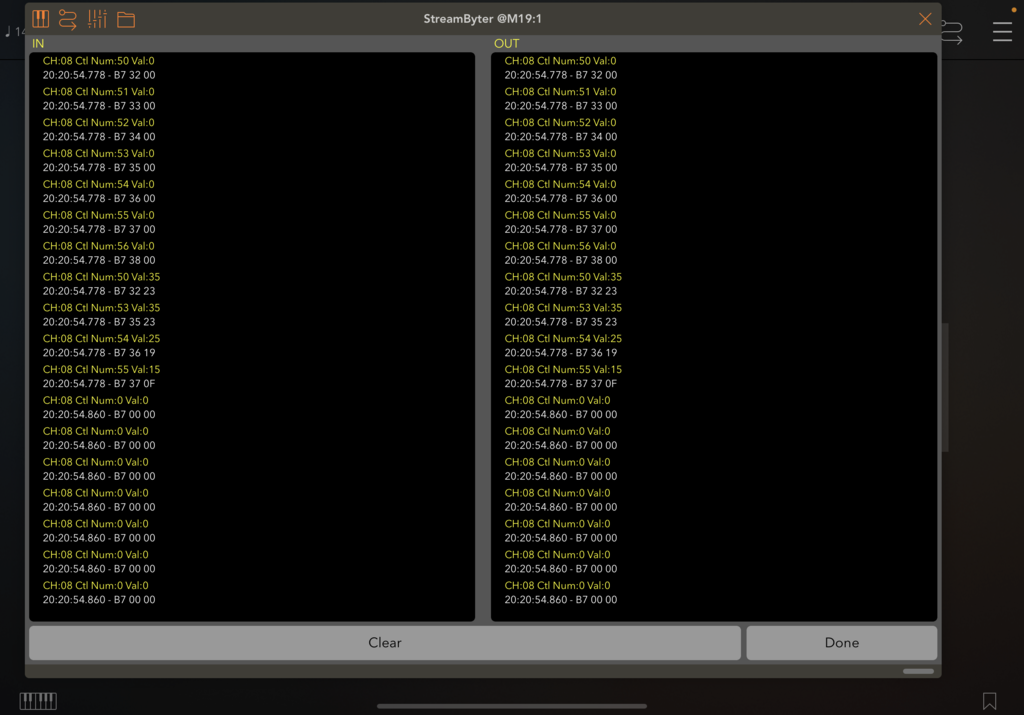

I routed it to an MF virtual port back to AUM so the startup output should always be on that monitor, and as I also engage the new scene by my controller with SB monitor already open @aum.

not too sure how to use  'myMessage' code, do I make an Alias for myMessage? and where should I exactly put it, on top of the existing presets script or a saparate SB instance?

btw If a put in on a saparate SB instance in MF, unconnected to anything, and I press install rules, then my virtual main MidiFire port is receiving the SysEx msg.

My presets script is in MF and getting reloaded on scene switch, your delays script is sitting statically in AUM and is receiving those preset CC values from virtual MF port. The workaround for now is doing this @mf:

If load
 Sub ResetAll
   Ass I00 = 0
   While I00 < 7
     Send dlay KI00 0th
     Mat I00 = I00 + 1
   End
 End

 ResetAll
 Snd dlay BD 0th #these are engaging the first preset of a new scene
 Snd dlay hh 1st
 Snd dlay sd 1st
 Snd dlay ride4 0th
 Snd dlay cl 0th
 Snd dlay tm 0th
End


what happens now is if I don't put those 0th to clear out the rest of the preset, the active sliders of the newly loaded scene aka hh 1st and sd 1st always do come through, but the clearout of the rest of the sliders is happening 80% of the time, when the clearout doesn't happen then the sliders from the previous preset come along for the newly loaded one. So somewhere there is timing fluctuation, I don't mind doing it this way now as well though as it's 100% coming through this way.
